The renewable energy revolution has created unprecedented demand for wind turbine transport—one of the most complex challenges in the heavy haul industry. Moving wind turbine components isn’t just about size; it’s about navigating 180-foot blades through rural roads, hoisting 100-ton nacelles onto specialized trailers, and coordinating multi-component deliveries where a single delay can halt an entire multi-million dollar wind farm construction.

As wind energy capacity grows—the U.S. added over 6,000 MW of new wind capacity in 2024 alone—transport logistics have become increasingly critical to project success. A single wind turbine requires 4-6 specialized transports, and a typical wind farm of 50 turbines means coordinating 200-300 individual shipments, each with unique routing and permitting requirements.

Understanding Wind Turbine Components and Transport Requirements

The Tower Sections: Weight and Height Challenges

Modern wind turbine towers stand 260-360 feet tall and are transported in 3-4 sections. Each tower section measures 12-15 feet in diameter and weighs 40,000-120,000 pounds. The largest sections can reach 170 feet in length when laid horizontally for transport. These massive steel cylinders require specialized extendable trailers that can accommodate lengths up to 200 feet while maintaining stability through curves and elevation changes.

Tower sections present unique transport challenges due to their length-to-weight ratio. While not the heaviest wind turbine components, their extreme length makes them vulnerable to bending stress during transport. Specialized cradles must support the sections at precise points to prevent deformation, and trailers need hydraulic suspension systems that can adjust to road conditions dynamically.

The Nacelle: Heavy-Haul at Its Extreme

The nacelle—housing the generator, gearbox, and control systems—represents the heaviest single component in wind turbine transport. Modern nacelles weigh 60,000-120,000 pounds and measure 20-30 feet long by 12-15 feet wide and high. These dimensions put nacelles squarely in superload territory, requiring extensive permitting and route engineering.

Transporting nacelles requires specialized heavy-haul lowboy trailers with 8-12 axles to distribute weight properly. The cargo’s height (often 13-15 feet when loaded) creates clearance challenges under bridges and overpasses. Route planners must identify every underpass, power line, and overhead obstruction along the entire journey, often requiring temporary removal of traffic signals or utility lines.

The Blades: Length and Fragility

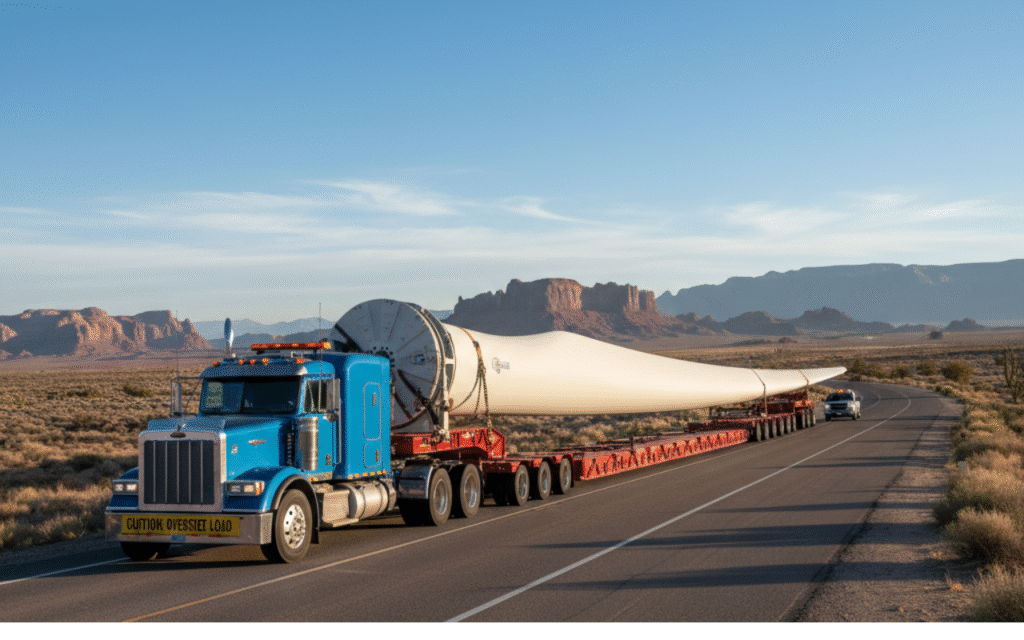

Wind turbine blades represent the single most challenging component to transport. Modern utility-scale turbines use blades measuring 150-180 feet long—longer than the wingspan of a Boeing 747. Despite their massive size, blades are relatively lightweight (10,000-25,000 pounds each) but incredibly fragile, constructed from fiberglass and carbon fiber composites that can crack under improper handling.

Blade transport requires specialized blade trailers with hydraulic steering systems on both the front truck and rear trailer. These self-steering trailers can articulate independently, allowing navigation of tight turns that would be impossible with conventional equipment. The trailer’s pivot points and blade mounting system must distribute stress evenly across the blade’s length while allowing the blade to tilt up to 45 degrees to clear obstacles.

The length of modern blades creates what’s known as tail swing—as the trailer navigates curves, the blade’s tip swings wide, potentially striking trees, signs, or buildings dozens of feet from the road edge. This requires extensive route clearing, including trimming trees, temporarily removing road signs, and coordinating with utility companies to adjust power lines.

The Hub: Oversized and Awkward

The hub, which connects the three blades to the nacelle, weighs 15,000-30,000 pounds and measures 12-18 feet in diameter. While smaller than other components, hubs present awkward dimensions that make loading and securing challenging. Their circular shape requires specialized fixtures to prevent rolling, and their irregular weight distribution demands precise load balancing.

Route Planning and Infrastructure Considerations

The Route Survey Process

Every wind turbine component transport begins with exhaustive route surveying. Professional surveyors drive the entire proposed route, documenting every potential obstacle with GPS coordinates, photography, and precise measurements. This survey identifies critical issues including bridge clearances (minimum 16-17 feet required for most nacelles), weight ratings (many rural bridges rated under 100,000 pounds), road width (minimum 14-16 feet for blade transport), turn radiuses (intersections must accommodate 200+ foot turning radius), and overhead obstructions (power lines, traffic signals, tree branches).

The route survey generates a detailed report that informs permit applications and identifies necessary infrastructure modifications. In some cases, survey findings make certain routes impossible, requiring alternate routing that can add hundreds of miles to the journey.

Infrastructure Modifications

Wind turbine transport frequently requires temporary infrastructure modifications:

• Traffic signal removal: Temporary removal of traffic lights at intersections where blade tail swing would strike equipment
• Power line adjustment: Utility companies lift or temporarily relocate lines that don’t meet minimum clearance requirements
• Road widening: Temporary widening of narrow sections by moving guardrails or clearing shoulders
• Bridge reinforcement: Temporary strengthening of weight-restricted bridges or use of temporary bypass roads
• Roundabout navigation: Removal of center island landscaping to create a sufficient turning radius

These modifications are coordinated with local authorities, utility companies, and property owners. Costs can range from $5,000 to $ 50,000, depending on the scope, and all modifications must be reversed after transport completion.

Permitting for Wind Energy Transport

Wind turbine components almost universally qualify as superloads, triggering the most extensive permitting requirements. Unlike routine oversized loads that can be permitted in days, superload permits for wind components typically require 4-8 weeks of processing time. Each component type requires separate permits, and multi-state projects need permits from every jurisdiction traversed.

State engineers review applications to verify route feasibility, often requiring engineering analyses that demonstrate bridge structures can handle loads and proposed routing avoids weight-restricted roads. Additional requirements typically include:

• Multi-vehicle escort requirements: Typically 2-4 pilot vehicles, depending on component size
• Police escorts: Required in many jurisdictions for superloads
• Utility coordination: Documented agreements with power and telecom companies
• Travel time restrictions: Often limited to overnight or weekend travel to minimize traffic impact
• Bond or insurance requirements: Additional coverage specifically for superload operations

Total permit costs for a single wind turbine (all components) typically range from $10,000-40,000, depending on route distance and the number of states crossed.

Equipment and Technology for Wind Transport

Specialized Blade Trailers

Blade transport has driven significant trailer engineering innovation. Modern blade trailers feature hydraulic self-steering rear sections that can pivot independently of the tractor, allowing navigation of turns with turning radii as tight as 100 feet despite hauling 180-foot loads. The blade mounting system uses hydraulic lifts that can raise the blade tip up to 45 degrees, creating clearance over obstacles while keeping the root end low.

Advanced blade trailers incorporate load monitoring systems with sensors that continuously measure stress on the blade at multiple points. If stress levels approach dangerous thresholds, drivers receive immediate alerts to adjust speed or trailer configuration. This technology has dramatically reduced blade damage during transport—once a significant cost factor in wind farm development.

GPS and Route Navigation Systems

Real-time GPS tracking is essential for wind turbine transport, but beyond basic location tracking, modern systems provide turn-by-turn navigation optimized for superload dimensions. These systems integrate route survey data, displaying upcoming clearances, turn radiuses, and potential obstacles before the driver reaches them. The software calculates tail swing in real-time based on current speed and steering angle, warning drivers of potential strikes before they occur.

Project Coordination and Logistics

Multi-Component Sequencing

Wind farm construction requires precise sequencing of component deliveries. Cranes can only install turbines when all components for that turbine are on-site, but limited storage space at remote wind farm locations prevents warehousing dozens of blades and nacelles. Transport coordinators must sequence deliveries so components arrive just-in-time for installation while accounting for transport delays, weather interruptions, and construction progress.

For a 50-turbine wind farm, project coordinators manage 150-200 individual component transports over 3-6 months, ensuring steady delivery flow without overwhelming site storage capacity. This requires sophisticated logistics planning and constant communication between transport teams, site managers, and installation crews.

Weather Considerations

Wind turbine transport is highly weather-dependent. High winds can create dangerous conditions for long blade transport—winds exceeding 25 mph make blade transport unsafe due to the sail effect on the massive surface area. Ice and snow complicate already challenging route navigation, particularly on rural roads with limited winter maintenance. Rain and fog reduce visibility, critical for drivers navigating obstacles within inches of clearance.

Weather delays are inevitable in wind turbine transport. Projects must build schedule buffers of 20-30% to accommodate weather-related interruptions. During winter months in northern states, suitable transport windows may be limited to a few days per week.

Cost Factors in Wind Turbine Transport

Wind turbine component transport represents a significant portion of wind farm development costs. Typical costs for a single turbine’s transport package include:

• Tower sections (3-4 pieces): $15,000-35,000 per turbine
• Nacelle: $25,000-60,000 per unit
• Blades (3 blades): $30,000-75,000 total
• Hub and miscellaneous components: $8,000-15,000
• Permits and escorts: $10,000-40,000 per turbine
• Infrastructure modifications (shared across project): $50,000-200,000

Total transport costs per turbine typically range from $88,000-225,000, meaning a 50-turbine wind farm can incur $4.4-11.25 million in transport expenses alone. For distant projects requiring cross-country transport, costs can exceed $250,000 per turbine.

Emerging Trends in Wind Transport

Segmented Blade Technology

Blade manufacturers are developing segmented blade designs that split long blades into 2-3 sections for transport, then assemble them on-site. This innovation could revolutionize wind transport by allowing blade transport on routes currently impossible due to length restrictions. While still in early adoption, segmented blades are expected to reduce transport costs by 20-40% while opening previously inaccessible sites to wind development.

Rail Transport Integration

Some wind farms accessible by rail are investigating hybrid rail-truck transport models. Components ship by rail to a location near the wind farm, then complete the final leg by truck. This approach can reduce long-distance trucking costs and minimize road infrastructure impacts, though it requires specialized rail-to-truck transfer facilities.

Offshore Wind Challenges

As offshore wind development accelerates, transport logistics are evolving to address marine transport requirements. Offshore wind turbines are even larger than land-based units, with blades exceeding 350 feet and nacelles weighing 150,000+ pounds. Transport involves coordinating port logistics, specialized marine vessels, and weather windows suitable for offshore operations—adding complexity layers beyond land-based transport.
